ExcavatorTrapezoidal bucket

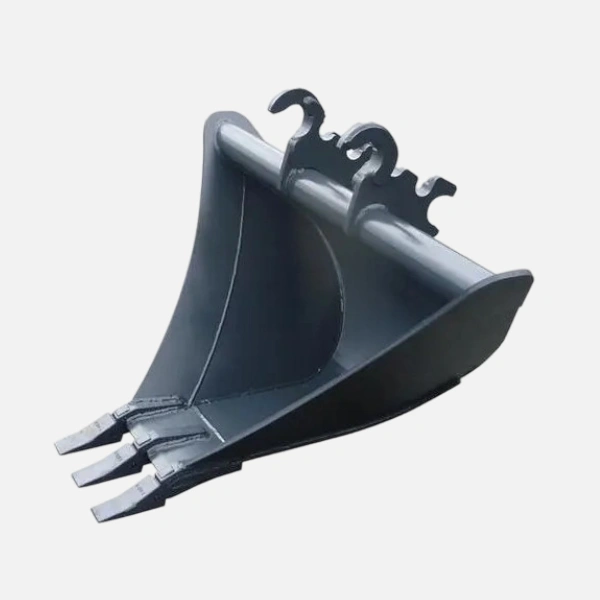

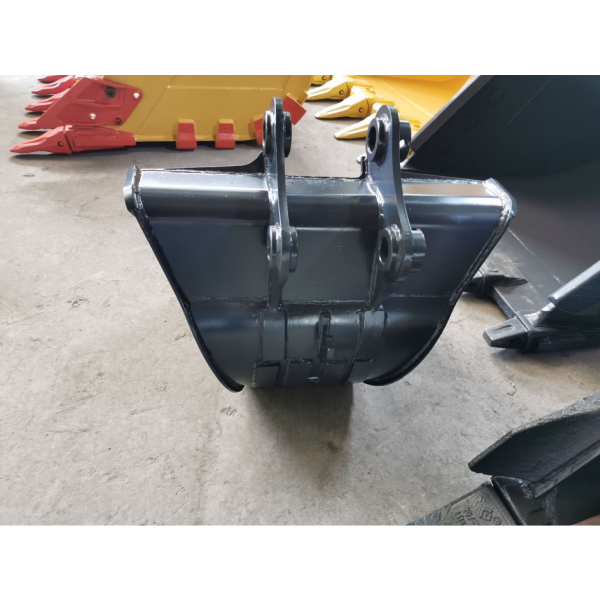

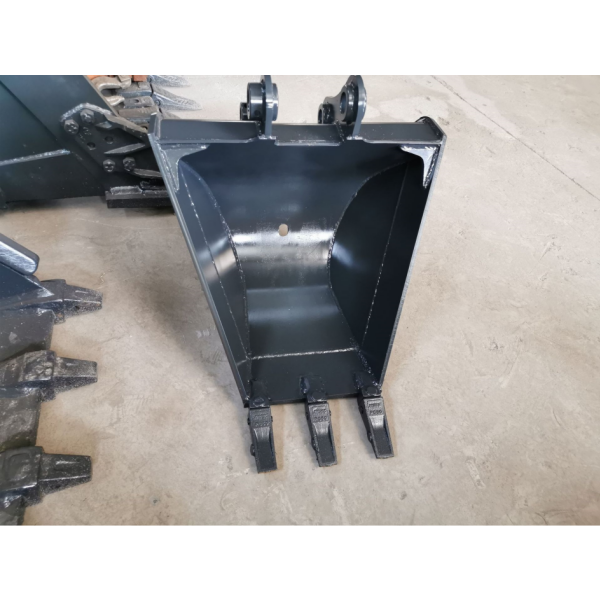

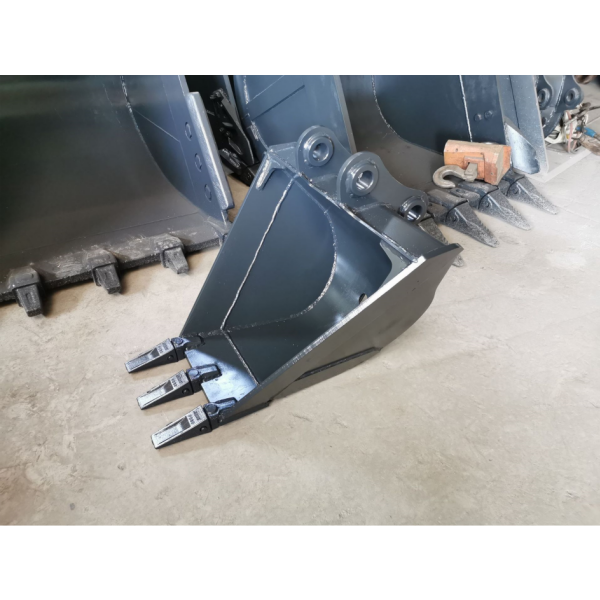

ExcavatorTrapezoidal bucket, also known as V-ditch bucket or V bucket, is named by the design which features a trapezoidal appearance.

ENQUIRY!
Category:

ExcavatorTrapezoidal bucket, also known as V-ditch bucket or V bucket, is named by the design which features a trapezoidal appearance.



Applied Size: It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require.



Application:

Mainly applied in forming ditches in wide fields, such as waterways and roadways in government projects and forestry.



Model    Bucket Size Top (overall) width/In    Base width/In    Weight/Lbs Top (overall) width/mm    Base width/mm    Weight/KG
8-12 Ton  48 x 12  48  12  739  1,219  305  335
 54 x 18  54  18  787  1,372  457  357
 13-20 Ton  54 x 12  54  12  983  1,372  305  446
 60 x 18  60  18  1,045  1,524  457  474
 66 x 24  66  24  1,217  1,676  610  552
21-25Ton  63 x 20  63  20  1,371  1,600  559  622
 69 x 24  69  24  1,565  1,753  610  710
26-30Ton  66 x 20  66  20  1,704  1,676  508  773
 72 x 24  72  24  1,907  1,829  610  865
31-40Ton  74 x 20  74  20  2,513  1,880  508  1,140
 80 x 24  80  24  2,740  2,032  610  1,24
